We are the distributor for Radwag balance in india.

Digital Temperature Controller cum Indicator

• constant rate of loading
• exactly reproducible results
• because of fatigue-proof counterweight principle
• tablet diameter: 1st range 0-15mm, 2nd range 0-35mm
• crushing strength shown in n, kpsc, on linear scale

• Range i: 0 - 200 n, 0 - 20 kp
• Range ii: 0 - 200 n, 0 - 28 sc
• Range iii: 0 - 20 kp,0 – 28 sc
• Range iv: 0 - 100 n, 0 - 10 kp
• Range v: 0 - 100 n, 0 - 14 sc
• Range vi: 0 - 10 kp, 0 - 14 sc

UNIQUE FEATURES

• Gives Validated Hardness Measurement for Tablets, s per GMP norms
• Scientifically - designed for Precise Accuracy
• The instrument can also be mounted on Tabletting machine.
• Easy to install and operate
• Tests tablets upto 25 mm diameter
• Dial calibrated for 0-20 kgf with a least count of 0.2 kgf

PRINCIPLE OF MEASUREMENT

Load is applied by hand to a lever transmitting pressure from the tablet to be crushed, through a compression load spring registering the force onto a calibrated dial gauge. This dial gauge is provided with a "Main" as well as a "Follower" reading hands. As the level is pressed, both hands move in tandem. And, once the tablet is broken, the main hand comes back to zero position, while the follower hand remains locked at the reading to denote the breaking force. This facilitates accurate recording of the reading.

PRINCIPLE OF MEASUREMENT

The crushing of a tablet results in tablet splinters flying in all directions. To prevent this, an acrylic guard surrounding the tablet-crushing chamber is provided. The splinters are thus restricted to the chamber. After the test is over, the acrylic guard can be swiveled and the splinters removed with the help of a brush.

Tablet hardness tester is supplied in elegant wooden box with Stand, Adapter for validation, Allen Key and cleaning brush.

Chamber Sizes:

• 2x2x2 ft. (1200x600x600 mm)
• 6x3x2 ft. (1800x900x600 mm)

optional:

• Extra Cost
• Exhaust ducting dia 3" or 4" dia per running foot.

UNIQUE FEATURES

• Extremely Compact Construction.
• Long Lasting, German Make Vacuum Pump
• Polycarbonate Vacuum Dessicator
• Stainless Steel (GMP) Construction
• Vacuum Level Upto 22" of Hg

It's the most ideal "LEAK TEST" instrument for checking Blister Packs and Strips. It makes the conventional dessicator with a huge vacuum pump, obsolete. The German make Vacuum Pump ensures that a high level of vacuum is created in the shortest possible time. And the die-pressed, polycarbonate vacuum dessicator sustains the vacuum for a long time. A vacuum gauge is provided to indicate the vacuum level. This is connected to the isolation valve which helps disconnect the source, thereby avoiding the need for running the vacuum pump continuously. While its amazing compactness saves valuable space in process laboratories, a 0-5 minute timer helps the operator attend to other chores at a time!

STANDARD FEATURES

• Temperatures to 3000C ( 5720F)
• Hydraulic primary control thermostat
• Second, independent safety thermostat provides over- temperature protection.
• Radiant wall heating provides uniform temperature and total use of work space
• Vacuum gauge, control and release valves
• Full view tempered safety glass window
• 304 stainless steel interior
• Heavy gauge, two tone baked enamel steel cabinet - Two (2) removable, solid aluminium shelves
• Secure latch and silicone rubber door gasket provide tight seal
• 3" of glass wool insulation insures minimum heat loss
• 3- wire line cord
• Work space thermometer
• 1 year limited warranty

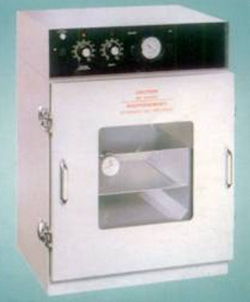

JK SERIES

One - piece seamless drawn chamber, 11"dia x 12" deep. Two shelves (one 10 ¾" wide, one 8 ½" wide) provide 212 sq. in. of loading area. Choice of two temperature ranges to 2000C (3920F) or 2600C (5000F)

MODEL JK - 220

Square chamber vacuum oven with stainless steel workspace, 10" wide x 12" deep x 10" high, with two solid aluminium shelves. Temperatures to 2200C (4280F)

MODEL JK - 220

Same as Model VF above except workspace is 14" wide x 20" deep x 14" high

MODEL JK - 300

Square chamber vacuum oven with top mounted control panel utilizes available bench space to maximum advantage. Stainless steel work space 12" wide x 13 ½" deep x 12" high with two solid aluminium shelves. Temperatures to 3000C (5720F)

MODEL JK - 300

Same as Model VC - 300 above except workspace is 20" deep to accommodate larger loads.

SPECIFICATIONS

Specification subject to change without Notice

STANDARD EQUIPMENT

• Standard Electrical Characteristics
• 230V/ 440V, 50 Hz, 1 Phase (Can be operated on 208 volts. Heat input will be reduced by 20%)

JVR SERIES

Complete with 3" dia. vacuum gauge reading to 30" Hg; two (2) vacuum needle valves for vacuum and flushing; control panel including line switch, hydraulic control thermostat and adjustable safety thermostat with individual pilot lights indicating which thermostat is controlling the temperature; dial thermometer inside oven. Shelves rated 15 lbs. distributed loading; maximum oven loading of 30 lbs.

MODELS JVF 220 AND JVK 220

Vacuum levels precisely controlled between 2" and 30" Hg; three - way valve for easy evacuation and flushing; side mounted control panel with all controls and vacuum line connections in a single, convenient location; vacuum gauge, hydraulic control thermostat with pilot light and built in high limit thermostat; power switch is a combination circuit breaker and pilot light; dial thermometer inside oven.

Shelves in Model JVF - 220 rated 20 lbs. distributed loading; maximum 40 lbs. oven load. Shelves in Model JVK - 220 rated 30 lbs. distributed each; maximum oven load of 60 lbs.

See below for optional digital controls available on Model JVK - 220

MODELS JVC - 300 AND JVL - 300

Top mounted control panel complete with vacuum gauge reading to 30" Hg; vacuum control valve, ¼" connectors, vacuum release valve, hydraulic control thermostat with pilot light line switch with pilot light and circuit breaker; dial thermometer inside oven. Shelves rated 25 lbs. distributed loading: 50 lbs. maximum oven load.

Description/ Specification of Programmable Digital Tablet Disintegration Test Apparatus

Features of Programmable Digital Tablet Disintegration Test Apparatus :

• Instrument is equipped with single stepper motor.
• Five programmable Tests are provided to Store DT time and Temperature.
• Digital indicator for temperature with optically isolated electronic heater driver with water bath.
• The Instrument is also equipped with double channels Temperature system to ensure precise temperature control of the Tank and Beakers.
• Illuminator for clear observations Of Disintegration process has been provided.
• Soft membrane keypad and splash proof panel.
• A four line informative LCD display is provided to observe temperature and set time at a glance.
• Facility provided to prevent over shooting of temperature.
• Centronics Printer interface has been provided for recording parameters like Temperature, Batch No, Product ID etc.
• Facility for self-validation of RPM is incorporated.
• Automatic Parking of both Baskets after the Test is over.
• DT-TIME for Tablets from individual Tube Of Right and Left Basket can be monitored.
• The equipment meets all international standards with respect to Calibration, Validation and IQ, OQ requirements.

SPECIFICATIONS:

• Number of Strokes : 30 Strokes/min.
• Temperature Range : 30.0 C to 40.0 C
• Display : Four line illuminated LCD display.
• Dual Timer : Settable from 1 min to 99 min.
• Sample Availability : Yes
• Supplier Product Code: VI-03

• The rate of release of medicament in the tablets or capsules, under specified conditions, can be determined by Dissolution Test
• This Advanced, Microprocessor based instrument is designed to conduct dissolution tests, as per IP/BP/USP Standards
• Various models like the Single station, six or eight stations programmable instrument to meet Routine & sustained release tests are available
• The instrument stores 25 different test programs for RPM, Time interval & test time temperature
• Dual channel sensing system for precise control of temp in dissolution vessels & water bath
• The apparatus is equipped with very reliable maintenance free Japanese stepper motor drive for stirrers. The speed of the stepper motor is controlled and maintained by advanced microprocessor based system
• Powerful motorized mechanism for up and down movement of stirrer platform
• User friendly 4 lines LCD screen to display test parameters
• Validation Kit & Calibrator supplied on request

• The rate of release of medicament in the tablets or capsules, under specified conditions, can be determined by Dissolution Test
• Karl Fischer Titrator in which the burettes and also the conventional syringe and plunger arrangement is eliminated
• The Karl Fischer Reagent is added to the reaction beaker by a highly sensitive dispensing system
• K/F Reagent added by the dispenser is directly read on the digital readout up to 0.01 ml
• End point of the titration is indicated by an audio alarm and Red lamp
• Moisture contents displayed as total moisture or PPM or percentage as desired
• Printer interface provided

• Volumetric Titrator
• Easy to operate fully automatic Karl Fischer Titrator
• Dispensing unit for uninterrupted operations
• LCD display screen for user friendly operations
• Built-in 'Volume Validation' Program
• Parallel port printer interface
• Result in Percentage, PPM and mg of H2O
• Supports two methods for factor: Water and DST
• Factor mode: Calculates Average Factor
• Range: 100 PPM to 100% with appropriate sample size

• Advanced Volumetric Titrator
• Valveless Dispenser for uninterrupted operations
• Informative graphic display for user friendly operations
• Method storage facility up to 100 files
• Automatic drift compensation
• Password protected data
• Supports two methods for factor: Water and DST
• Results in Percent, PPM and mg of H2O
• Range of Moisture Detection: 50 PPM to 100% with appropriate sample size
• Printouts: Formats as per GLP requirements
• Built-in 'Volume Validation' Program
• PS2/QVVERTY keyboard interface for Quick DATA entry
• Parallel port printer interface
• RS 232 port for PC and Balance interface
• Dedicated software to transfer data to the PC
• Retrieval of DATA using Report and Search Facility

We are leading supplier of Tap Density Test Apparatus.

Features:

• Incorporated with Advanced Microcontroller.
• Alphanumeric display and user friendly feather touch keypad.
• Equipped with inbuilt validation facility.
• Non-volatile memory for storage of 24 test methods’ data.
• Informative help prompt messages displayed, to guide user while conducting test.
• Updated test status displayed.
• Calculates Bulk Density, Tapped Density, Compressibility Index and Hausner Ratio.
• Simultaneous action of rotating and tapping of the cylinders.
• Supports USP – I and USP – II. ASTM method (Available Optionally)
• Print format as per GLP requirements.

Specifications:

• Tap Setting Range: 1 – 9999 Taps
• Tap Cylinder Drive: Stepper Motor Driven
• Display: 20 x 4 Lines, Wide Angle, Alphanumeric Backlit LCD
• Key Board: 4 x 4 Matrix Feather Touch Key Board
• Parallel Port Printer Interface for Dot Matrix Printer
• Compliant with USP Specifications:
• Power Supply: 230 ± 10 V AC, 50/60 Hz, 2 Amps Max.
• Dimensions (cm): 36 x 26 x 36
• Weight: Nett — 17 Kg. Gross — 25 kg (Approx.)

Applications:

• Pharmaceutical and Bulk Drug Industry
• Food Industry
• Packaging Industry
• Granules and Flakes Manufacturing Industry

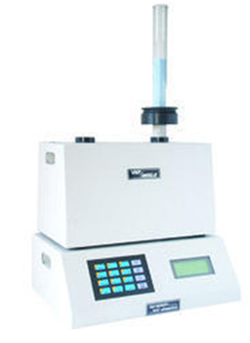

We are leading manufacturer & supplier of Bulk Density Apparatus.

Features:

• Incorporated with Advanced Microcontroller.
• Alphanumeric display and user friendly feather touch keypad.
• Equipped with inbuilt validation facility.
• Non-volatile memory for storage of 24 test methods’ data.
• Informative help prompt messages displayed, to guide user while conducting test.
• Updated test status displayed.
• Calculates Bulk Density, Tapped Density, Compressibility Index and Hausner Ratio
• Simultaneous action of rotating and tapping of the cylinders.
• Supports USP – I and USP – II. ASTM method (Available Optionally)
• Print format as per GLP requirements.

Specifications:

• Tap Setting Range: 1-9999 Taps
• Tap Cylinder Drive: Stepper Motor Driven
• Display: 20 x 4 Lines, Wide Angle, Alphanumeric Backlit LCD
• Key Board: 4 x 4 Matrix Feather Touch Key Board
• Parallel Port Printer Interface for Dot Matrix Printer
• Compliant with USP Specifications:
• Power Supply: 230 ± 10 V AC, 50/60 Hz, 2 Amps Max.
• Dimensions (cm): 36 x 26 x 36
• Weight: Nett-17 Kg. Gross — 25 kg (Approx.)

Applications:

• Pharmaceutical and Bulk Drug Industry
• Food Industry
• Packaging Industry
• Granules and Flakes Manufacturing Industry

Features:

• Advanced microprocessor-based circuitry
• Programmable Modes: Timer or Rotation
• Designed with a 10 tilt feature, used when the shape or size causes irregular tumbling
• Magnetic Trays supplied along with the instruments to collect the tablets
• The two acrylic drums having a slot positioned so as to automatically discharge the tablets into the trays, at the end of the test without dismantling the drum assembly
• Total number of drum revolutions can be set in the range of 1 to 9999
• Provides connectivity to any balance via RS 232 interface to weigh the tablets before and after conducting the test. (with the use of appropriate cable)
• Compliant with IP, BP and USP standards
• IQ, OQ documents will be provided with the instrument

Specifications:

• No. of drums: 2.
• Fixed RPM: 25 RPM
• Accuracy: ± 1 rotation
• Timer: Settable up to 11 hrs 59 min 59 sec
• Counter (Rotation): 1 to 9999 rotations
• Display: 2 Line LCD Display
• Input: 4 x 4 Tactile Keyboard
• Power: 220/230 V A C 50/60 Hz less than 25 VA
• Dimensions (L x W x H): 240 x 300 x 350 mm
• Weight: Net - 12 Kg, Gross- 20 Kg
• Accessories Provided: Acrylic Drums (2), Special Locking Magnetic Tray (2), Operating Manual (1)
• Optional Accessories: Abrasion Drums

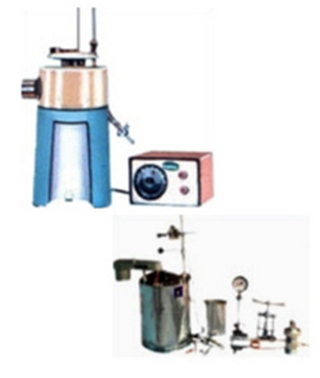

Our organization is involved in supplying a wide range of Oil Testing Instrument These oil testing instruments provide authentic & unbiased results at the time of using for testing as well as analyzing the purity of oil. Owing to excellent performance and high accuracy, these are highly demanded for oil testing.

Our range of oil testing instruments includes :

• Electrically heated Models with energy regular ( without thermometers )
• Pensky martens flash point tester ( Closed cup )
• Redwood viscometer no.1
• Redwood viscometer no.2
• Abel flash & fire point apparatus
• Clevland flash & fire point apparatus
• Clevland flash & fire point apparatus, with concealed hot plate
• Engler viscometer
• Saybolt viscometer
• Tar viscometer
• Cloud & pour point apparatus for single test
• Cloud & pour point apparatus for single test with insulated body
• Softening point apparatus ( ring & ball apparatus ) hand operated with glass beaker
• Softening point apparatus ( ring & ball apparatus ) with electric motorised stirrer &
• Electric heater with energy regulator
• Drop point apparatus as per ip 31 or ip 132 hand operated with glass beaker
• Drop point apparatus as per ip 31 or ip 132 with electric motoriede stirrer &
• Electric heater with energy regulator
• Distillation apparatus as per ip 24,132 & is 1448 ( p : 18 ) single distillation app.with
• Energy regulator & gear device
• Aniline point apparatus as per is-1448 ( p-3 ), completer with jacket
• Smoke point apparatus as per ip 57 & is 1448 ( p-31 ) & astm d 1322
• Penetrometer apparatus supplied with penetration needle,sample container & weights
• Penetrometer apparatus supplied with penetration cone hollow type, sample container & weights
• Penetrometer apparatus with automatic timer & electrical arrangement with
• Brass cone, sample container & weights
• Bomb colorimeter as per ip-12 & astm d 4809 is 1448 ( p-6 ) is 1350, complete with
• Digital thermometer & standard accessories
• Installation charges for all above at extra cost
• Thermometers for above in i.p. & a.s.t.m., pl
